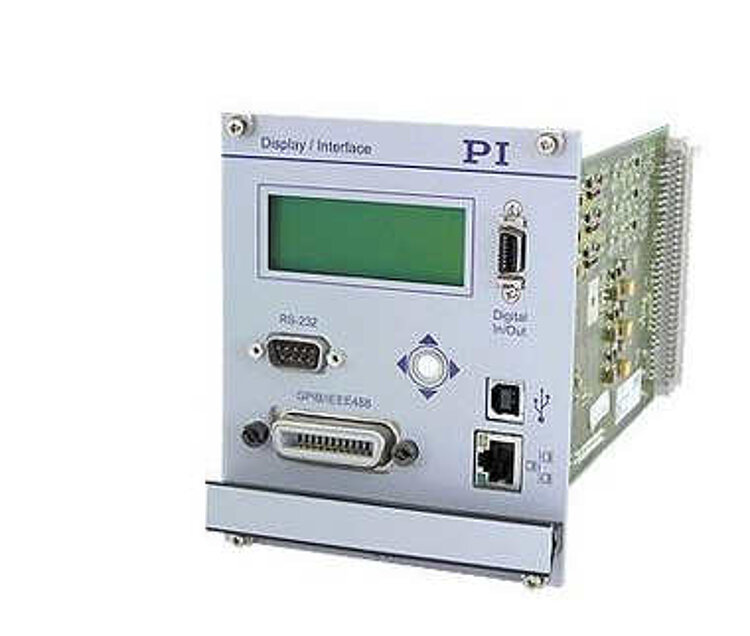

E-517 Digital Piezo Controller Operation Module
Wave Generator, Data Recorder, Display, Multiple Interfaces, for E-500 System
- Low-noise 24-bit D/A converter
- Sampling rate 25 kHz
- TCP/IP, USB, IEEE 488 and RS-232 interfaces
- 6-digit display for voltage and position
- 1- & 3-channel versions
- Wave generator with programmable trigger-I/O
- Module for E-500 piezo controller rack
Specifications
This content is only available on tablets or desktop devices.Specifications
E-517.i1, E-517.i10 | E-517.i3, E-517.i30 | |
---|---|---|
Function | Digital operation module | Digital operation module |
Channels | 1 | 3 |
Processor | DSP 60 MHz | DSP 60 MHz |
Sampling rate, sensor | 25 kHz, 8-times oversampling | 25 kHz, 8-times oversampling |
Thermal drift | Stability: 0.2mV | Stability: 0.2mV |
Linearity @ nominal range | 0.01 % | 0.01 % |
Resolution | DAC: 24 bit, ±12 VADC: 18 bit, Sampling | DAC: 24 bit, ±12 VADC: 18 bit, Sampling |
Interface and operation | ||
Interface / Communication | Ethernet (TCP/IP), USB, RS-232, IEEE488 (only E-517.i1) | Ethernet (TCP/IP), USB, RS-232, IEEE488 (only E-517.i3) |
I/O ports | 1 trigger input1 trigger output5 VMDR14 connector | 3 trigger inputs3 trigger outputs5 VMDR14 connector |
Command set | PI General Command Set (GCS) | PI General Command Set (GCS) |
User software | PIMikroMove | PIMikroMove |
Software drivers | LabVIEW drivers, Windows and Linux Libraries (DLL) | LabVIEW drivers, Windows and Linux Libraries (DLL) |
Supported functionality | Wave generator, data recorder, macro programming | Wave generator, data recorder, macro programming |
Display | LCD display for monitor signals (position and voltage), states and trackball menus | LCD display for monitor signals (position and voltage), states and trackball menus |
Manual control | Operation via trackball | Operation via trackball |
Miscellaneous | ||
Operating temperature range | 5 to 50 °C | 5 to 50 °C |
Dimensions | 21HP / 3RU | 21HP / 3RU |
Mass | 0.37 kg | 0.37 kg |
Operating voltage | E-500 system | E-500 system |
