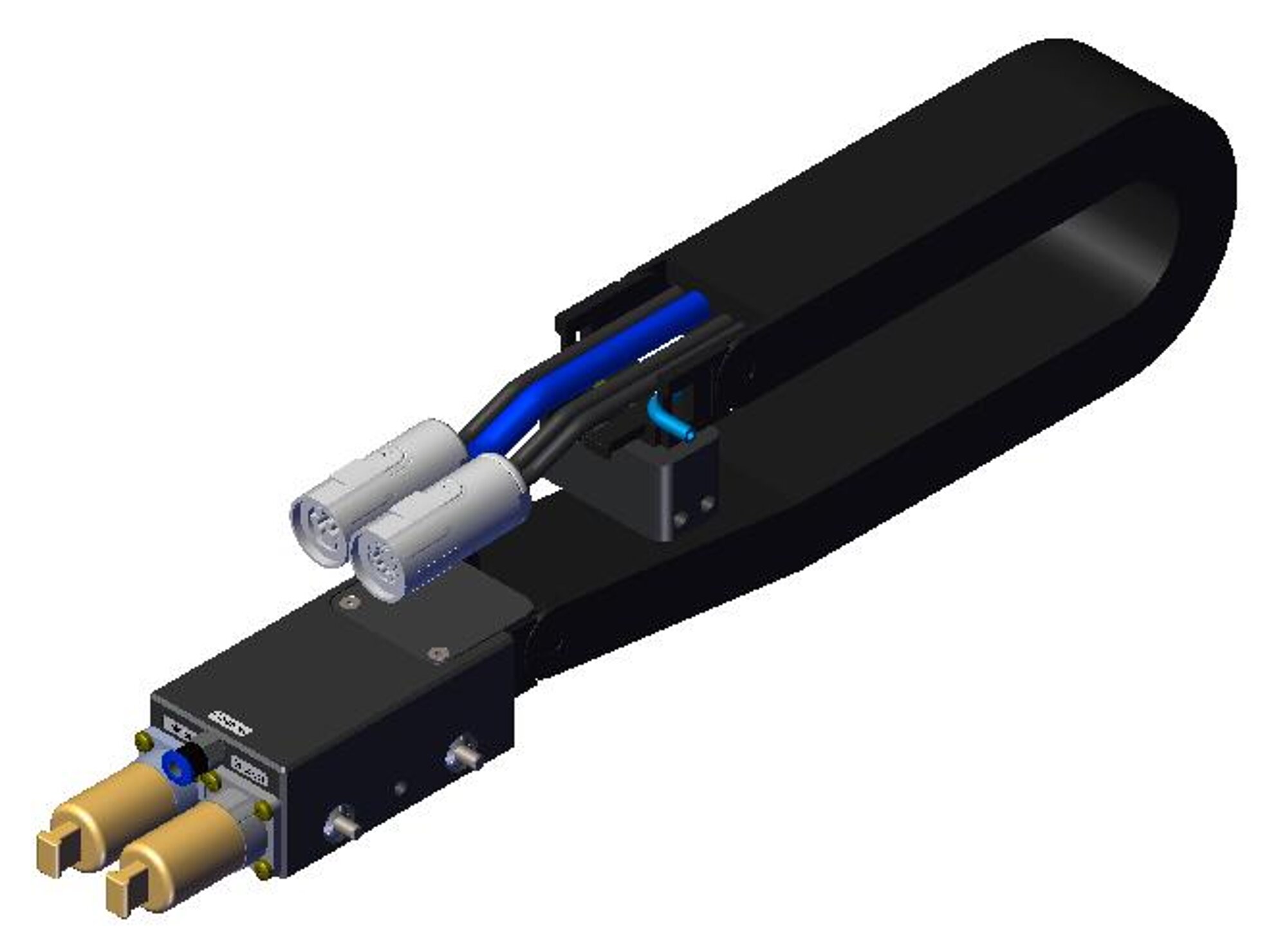

V-417.E1XYHxx Drag Chain for V-41x Positioners

Cable Management for XY Assemblies Consisting of V-412 and V-417 Linear Stages

  • For XY assemblies consisting of V-412 linear stages
  • For XY assemblies consisting of V-417 linear stages
V-417.E1XYHxx Drag Chain for V-41x Positioners
产品描述 规格 下载 报价/订购

Function of drag chain

In XY assemblies consisting of V-412 or V-417 linear stages, the V-417.E1XYHxx drag chain takes over the cable management of the Y axis in X direction. For this purpose, the drag chain is mounted on the X axis.

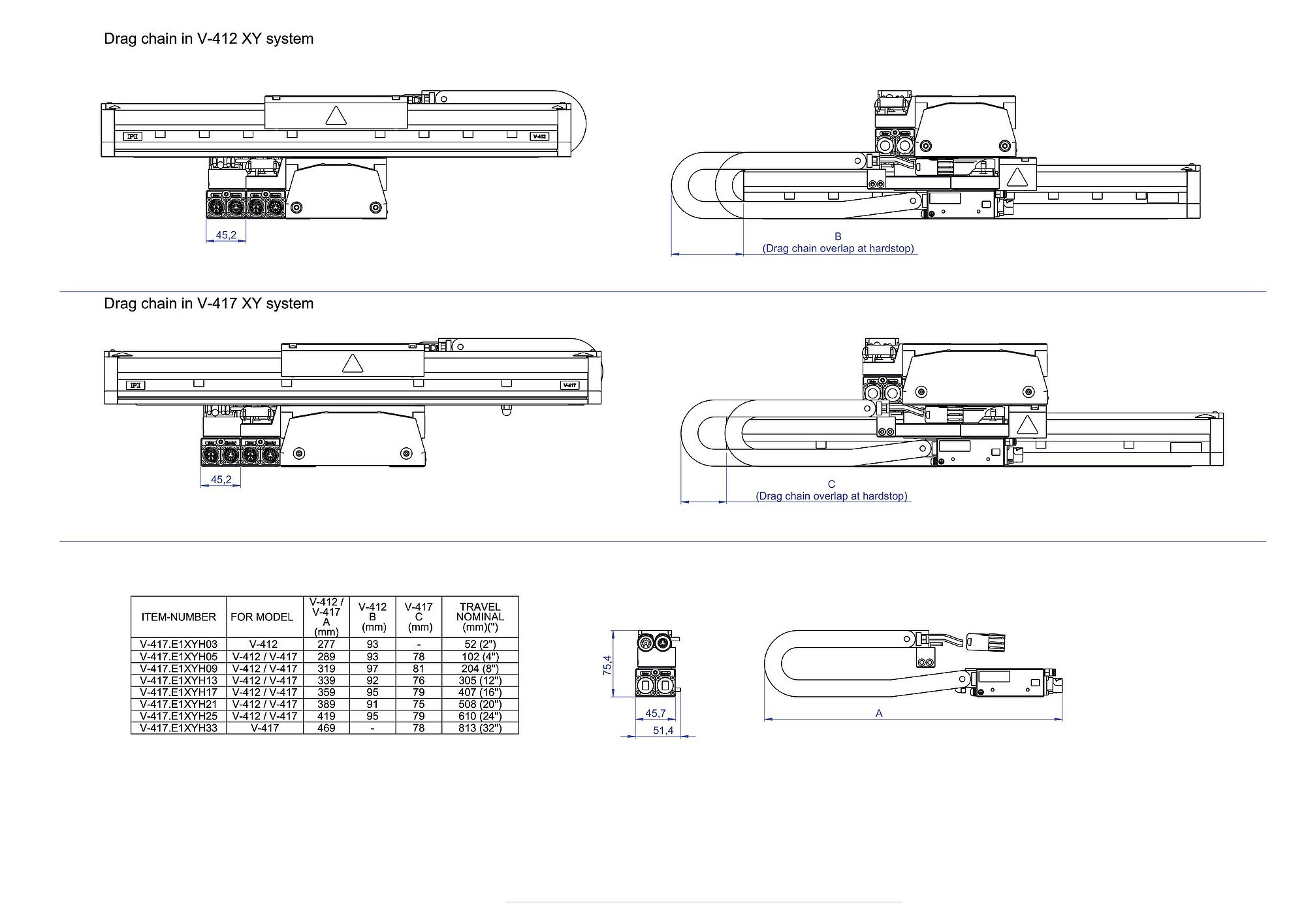

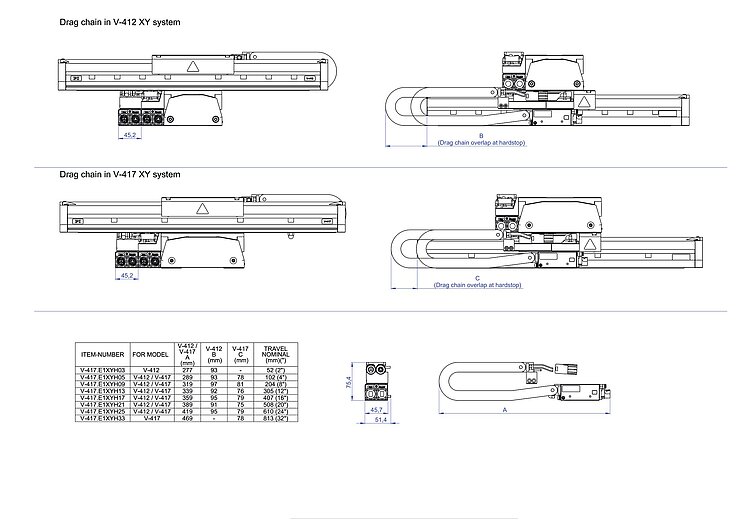

Drag chains for V-412 and V-417 XY assemblies

V-41x.03xxxxE1 - 52 mm travel range: V-417.E1XYH03

V-41x.05xxxxE1 - 102 mm travel range: V-417.E1XYH05

V-41x.09xxxxE1 - 204 mm travel range: V-417.E1XYH09

V-41x.13xxxxE1 - 305 mm travel range: V-417.E1XYH13

V-41x.17xxxxE1 - 407 mm travel range: V-417.E1XYH17

V-41x.21xxxxE1 - 508 mm travel range: V-417.E1XYH21

V-41x.25xxxxE1 - 610 mm travel range: V-417.E1XYH25

V-41x.33xxxxE1 - 813 mm travel range: V-417.E1XYH33



When ordering, please note the following:

Regardless of the travel range of the Y axis, the V-417.E1XYHxx drag chain must be selected for the travel range of the X axis.

Specifications

数据表

Datasheet V-417.E1XYHxx

版本/日期
2024-02-28
pdf - 1 MB
版本/日期
2024-02-28
pdf - 1 MB

Downloads

数据表

数据表

Datasheet V-417.E1XYHxx

版本/日期
2024-02-28
pdf - 1 MB
版本/日期
2024-02-28
pdf - 1 MB

文件

文件

UserManual V417UM0001

V-417.E1XYHxx Drag Chains

版本/日期
2024-02-20
pdf - 945 KB
版本/日期
2024-02-20
pdf - 951 KB

3D模型

3D模型

V-417.E1XYHxx 3D Model

zip - 10 MB
